LandMark™ 006 IMU
Low noise, high speed, six-axis IMU.
The LandMark™006 is Gladiator Technologies’ newest high-speed, six-axis MEMS Inertial Measurement Unit engineered for precise navigation and stabilization, especially in demanding, GPS-denied environments where reliable motion sensing is critical. Featuring ultra-low noise sensors, VELOX™ high-speed processing, and user-configurable firmware, it delivers high-accuracy stabilization and measurement for mission-critical applications. Compact at just 0.63 cubic inches, the LandMark™006 IMU is factory calibrated across the full temperature range and conditioned for environmental performance.
Product Highlights
0.63
Cubic Inches
0.0254°/√Hr
ARW
600 Hz
Bandwidth
Non-ITAR
35°/hr
Bias Over Temperature
10 kHz
Data Rates
Overview
- Stable Over Temperature
The LandMark006 IMU is factory calibrated and conditioned across extreme environments to deliver reliable inertial performance from -50°C to +85°C, helping reduce drift and maintain accuracy in demanding mission conditions.
- VELOX™ High Speed Processing
Gladiator Technologies’ cutting-edge VELOX processing architecture delivers filtered digital output at high speeds without compromising inertial sensor performance, enabling responsive and reliable motion data.
- Factory Calibrated
Gladiator inertial products are factory calibrated, modeled, and conditioned over temperature, shock, and vibration to ensure consistent performance in dynamic operating environments.
- Reduce Mission Cost
By combining precision MEMS sensing, environmental conditioning, and robust calibration into a compact IMU, the LandMark006 helps minimize integration complexity, reduce maintenance demands, and support lower overall mission lifecycle costs.
Specifications
Range
ARW
Bias In-Run
Bias Over Temp.
G Sensitivity
Scale Factor Error
±300°/s
0.0254°/ √Hr
0.8°/h
35°/h
< 0.01°/s/g
500 PPM
±490 g
Range
0.0017 °/s/ /√Hz
ARW
3.5°/h
Bias In-Run
0.075 °/s
Bias Over Temp.
0.06°/s
LSB for 16-bit
0.01°/s/g
G Sensitivity
500 PPM
Scale Factor Error
0.5 mrad
Alignment
Shock
Vibration
Operating Temp
Non-Operating Temp
1000g’s ½ sine ½ msec powered
8 gRMS (50Hz to 2kHz)
-50°C to +85°C
1000g
Shock
8g (50hz to 2kHz)
Vibration
-50°C to +85°C
Operating Temp
Non-Operating Temp
G
Update Rate
External Sync
Data Format
Max Bandwidth
Max Baud Rate
Digital Message Delay
Up to 8 kHz
Up to 8 kHz
16/24/32-bit (user selectable)
270 Hz
3.0 Mbaud
60 µs
Up to 10 kHz
Up to 10 kHz
16/24/32-bit (user selectable)
600 Hz (user specified)
7.5 Mbaud (user specified)
20µs
Up to 8 kHz
Update Rate
Up to 8 kHz
External Sync
16/24/32-bit (user selectable)
Data Format
350 Hz
Max Bandwidth
3.0 Mbaud
Max Baud Rate
57 µs
Digital Message Delay
Input Voltage
Power Consumption
+4.0 to +5.5 Max
500 mW – 640 mW
+4.5 to +5.5 Max
Input Voltage
250mW – 320mW
Power Consumption

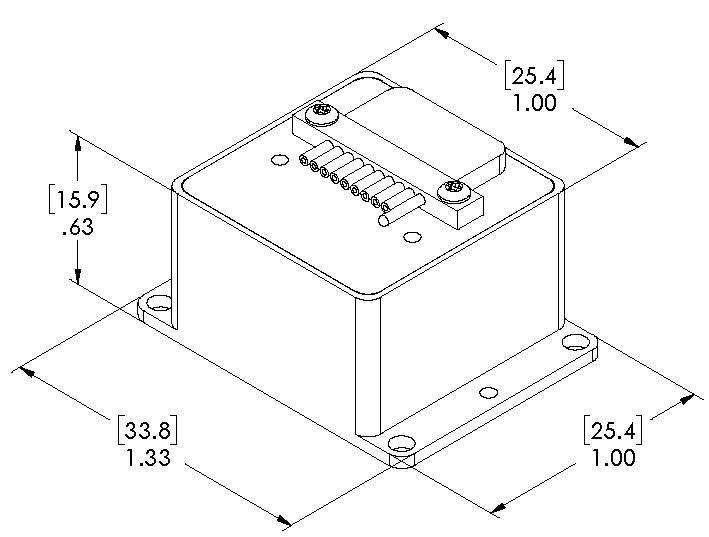

Mass
Size (US)
Size (Metric)
17 grams
1.0 x 1.0 x 0.63 inches ³
2.54 x 2.54 x 1.59 cm³
